03590729
JUMO 00508463 Widerstandsthermometer

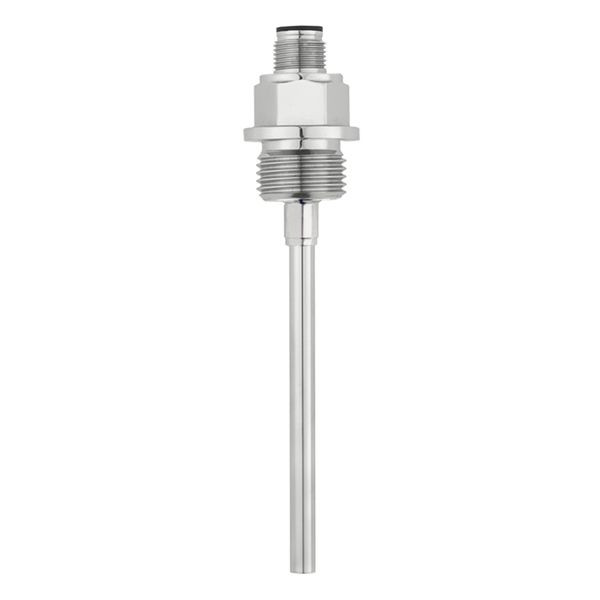

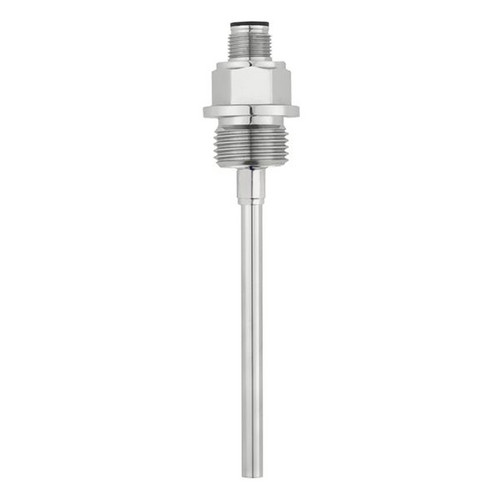

The screw-in resistance thermometer enables temperature measurements in gaseous and liquid media due to the temperature dependence of the electrical resistance of its built-in platinum sensor. The extremely compact design includes a Pt100 sensor (tolerance class B) in four-wire circuitry as measuring insert. The electrical connection is made via an M12 x 1 mm machine plug. The housing and protective tube are made of stainless steel. The protection tube is made of stainless steel 316 L (Mat.-No. 1.4401/1.4435) and has a dimension of 6 x 100 mm. The device is ideally suited for industrial applications. The screw-in resistance thermometer can be used to measure temperatures in the range of -50 to +200 °C (-58 to +392 °F). The process connection is a G 1/2 screw connection. The product is not intended for export to the USA!
