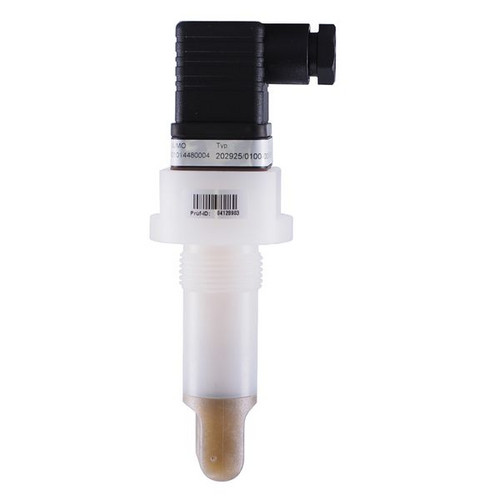

Abbildung ähnlich
JUMO

04563201
JUMO 300200 Konduktiver 2-Elektroden-Leitfäh

300200 4053877005988 00300200
auf Anfrage
je 1 ST
keine Verfügbarkeitsinformationen

Verpackungseinheiten

1 ST Menge übernehmen

Funktionen

Verkaufsdaten

Mindestbestellmenge 1 ST
Bestellschritt 1 ST

Beschreibung

This conductivity sensor has a cell constant of K=0.01 (for measuring ranges 10µ to 15 mS/cm) and a Pt100 measuring insert in two-wire circuit. It is installed via the process connection G 3/4A made of PVDF. The electrical connection is a device connector in angular design according to DIN 43650. The material of the electrode is graphite, the insertion length is 76 mm. The operating temperature is 0 to +135 °C and the maximum compressive strength is 16 bar at 25 °C as well as 9 bar at 60°C.

Merkmale

Verpackungseinheit 1
Gewicht 0,16
Gewichtseinheit KG
Gewichtbezugsmenge 1
Ausführung konduktiv
Max. Druck 16 bar
Max. Temperatur 130 °C
Ausführung des elektrischen Anschlusses sonstige
Winkelstecker ja
Ausführung des Prozessanschlusses G 3/4 Zoll
Zellenkonstante 1
Werkstoff der Elektrode Graphit
Sensortyp Pt100
Einstecklänge 76 mm
Werkstoff des Prozessanschlusses Polyvinylidenfluorid (PVDF)
Kurzbeschreibung Conductive 2-electrode conductivity sensor
eClass 11.0 - Klasse 27209090
UNSPSC 14.0801 - Klasse 41111900
