auf Anfrage
je 1 ST
keine Verfügbarkeitsinformationen
Verpackungseinheiten
| 1 ST | Menge übernehmen |
Funktionen
Verkaufsdaten
| Mindestbestellmenge | 1 ST |
| Bestellschritt | 1 ST |
Beschreibung

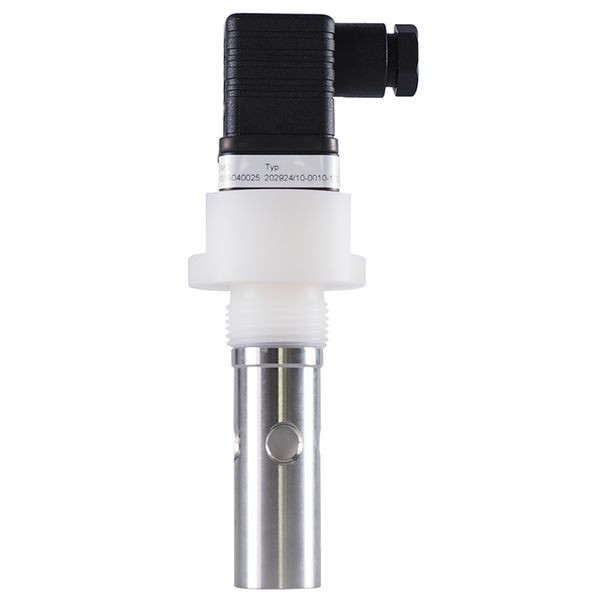

This conductivity sensor has a cell constant of K=0.01 (for measuring ranges 0.1 to 1000 uS/cm) and a Pt100 measuring insert in two-wire circuit. It is installed via the process connection G 3/4A made of PVDF. A device connector in angular form according to DIN 43650 is available as electrical connection. The material of the electrode is also stainless steel (1.4571). The insertion length is 76 mm. The operating temperature is 0 to +135 °C and the maximum compressive strength is 16 bar at 25 °C and also 9 bar at 60°C.
Merkmale
| Verpackungseinheit | 1 |
| Gewicht | 0,22 |
| Gewichtseinheit | KG |
| Gewichtbezugsmenge | 1 |
| Ausführung | konduktiv |
| Max. Druck | 16 bar |
| Max. Temperatur | 135 °C |
| Ausführung des elektrischen Anschlusses | sonstige |
| Winkelstecker | ja |
| Ausführung des Prozessanschlusses | G 3/4 Zoll |
| Zellenkonstante | 0.1 |
| Werkstoff der Elektrode | Edelstahl 316 Ti (1.4571) |
| Sensortyp | Pt100 |
| Einstecklänge | 76 mm |
| Werkstoff des Prozessanschlusses | Polyvinylidenfluorid (PVDF) |
| Kurzbeschreibung | Conductive 2-electrode conductivity sensor, 0.1..1000uS/cm, Pt 100, G 3/4A |
| eClass 11.0 - Klasse | 27209090 |
| UNSPSC 14.0801 - Klasse | 41111900 |
