Abbildung ähnlich
JUMO

04563203
JUMO 300203 Konduktiver 2-Elektroden Leitfähi

300203 4053877005834 00300203
auf Anfrage
je 1 ST
keine Verfügbarkeitsinformationen

Verpackungseinheiten

1 ST Menge übernehmen

Funktionen

Verkaufsdaten

Mindestbestellmenge 1 ST
Bestellschritt 1 ST

Beschreibung

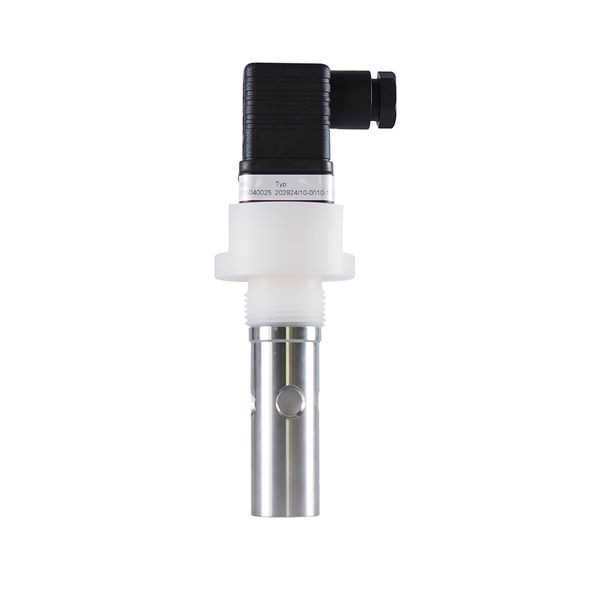

This conductivity sensor has a cell constant of K=0.01 (for measuring ranges 0.1 to 100 uS/cm). It is installed via the process connection G 3/4A made of PVDF. A device connector in angular form according to DIN 43650 is available as electrical connection. The material of the electrode is also stainless steel (1.4571). The insertion length is 76 mm. The operating temperature is 0 to +135 °C and the maximum compressive strength is 16 bar at 25 °C and also 9 bar at 60°C.

Merkmale

Verpackungseinheit 1
Gewicht 0,22
Gewichtseinheit KG
Gewichtbezugsmenge 1
Ausführung konduktiv
Max. Druck 16 bar
Max. Temperatur 135 °C
Ausführung des elektrischen Anschlusses sonstige
Winkelstecker ja
Ausführung des Prozessanschlusses G 3/4 Zoll
Zellenkonstante 0.1
Werkstoff der Elektrode Edelstahl 316 Ti (1.4571)
Sensortyp sonstige
Einstecklänge 76 mm
Werkstoff des Prozessanschlusses Polyvinylidenfluorid (PVDF)
Kurzbeschreibung Conductive 2-electrode conductivity sensor, 0.1 to 1000 uS/cm, G 2/4A
eClass 11.0 - Klasse 27209090
UNSPSC 14.0801 - Klasse 41111900
