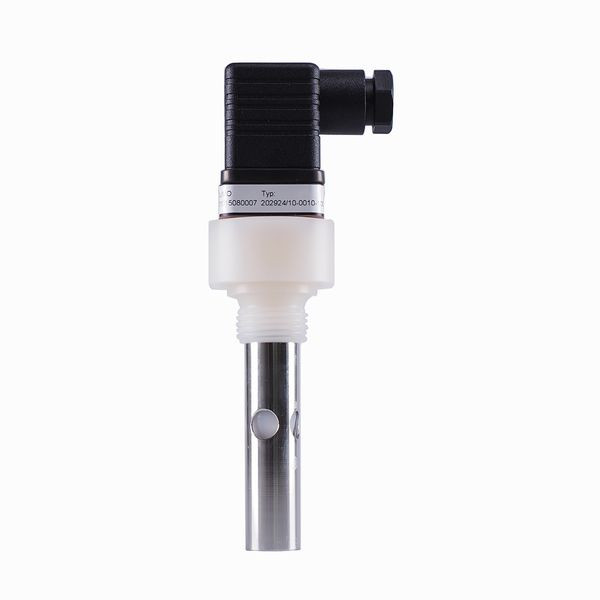

Abbildung ähnlich
JUMO

04563221
JUMO 338487 Konduktiver 2-Elektroden Leitfähi

338487 4053877005858 00338487
auf Anfrage
je 1 ST
keine Verfügbarkeitsinformationen

Verpackungseinheiten

1 ST Menge übernehmen

Funktionen

Verkaufsdaten

Mindestbestellmenge 1 ST
Bestellschritt 1 ST

Beschreibung

This conductivity sensor has a cell constant of K=0.01 (for measuring ranges 0.1 to 1000 uS/cm) and a Pt100 measuring insert in two-wire circuit. It is installed via the process connection G 1/2A made of PVFD. The electrical connection is a device connector in angular design according to DIN 43650. The material of the electrode is stainless steel (1.4571). The insertion length is 74 mm. The operating temperature is 0 to +135 °C and the maximum compressive strength is 16 bar at 25 °C as well as 9 bar at 60°C.

Merkmale

Verpackungseinheit 1
Gewicht 0,16
Gewichtseinheit KG
Gewichtbezugsmenge 1
Ausführung konduktiv
Max. Druck 16 bar
Max. Temperatur 135 °C
Ausführung des elektrischen Anschlusses sonstige
Winkelstecker ja
Ausführung des Prozessanschlusses G 1/2 Zoll
Zellenkonstante 0.1
Werkstoff der Elektrode Graphit
Sensortyp Pt100
Einstecklänge 74 mm
Werkstoff des Prozessanschlusses Polyvinylidenfluorid (PVDF)
Kurzbeschreibung Conductive 2-electrode conductivity sensor, 0.1..1000uS/cm, Pt 100, G 1/2A
eClass 11.0 - Klasse 27209090
UNSPSC 14.0801 - Klasse 41111900
