JUMO 352190 Thermoelement mit Bajonettverschl

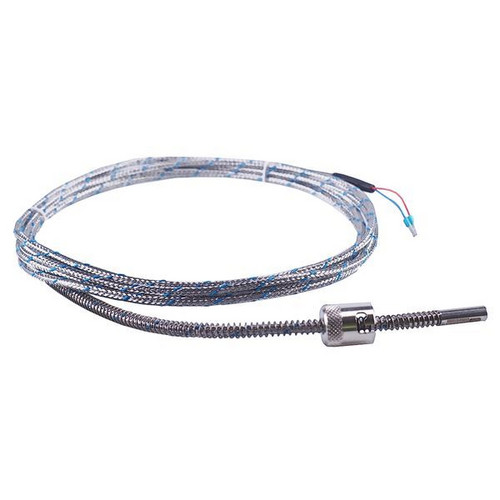

The pluggable thermocouple with bayonet lock (diameter 12 mm) and 2.5 m long compensation cable made of metal braiding is suitable for temperature measurement in solids by means of the Seebeck effect. The protective tube with a diameter of 6 mm made of heat-resistant steel, material 1.4571, has a flat tip. This design is therefore particularly suitable for measurements on slide bearings and tools, for example. The adjustment range of the insertion length at the spring is 20 to 180 mm. The single thermocouple 1x Fe-CuNi J according to DIN EN 60 584 (class 2) is designed for temperatures from 0 to 400 °C. The compensating cable withstands ambient temperatures from -20 to +350 °C.
