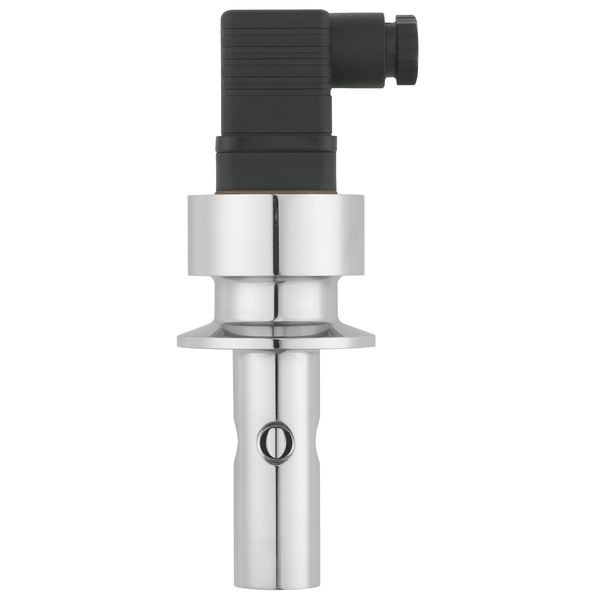

Abbildung ähnlich
JUMO

04563294
JUMO 405886 Konduktiver 2-Elektroden Leitfähi

405886 4053877005865 00405886
auf Anfrage
je 1 ST
keine Verfügbarkeitsinformationen

Verpackungseinheiten

1 ST Menge übernehmen

Funktionen

Verkaufsdaten

Mindestbestellmenge 1 ST
Bestellschritt 1 ST

Beschreibung

This conductivity sensor has a cell constant of K=0.01 (for measuring ranges 0.1 to 1000 uS/cm) and a Pt100 measuring insert in two-wire circuit. It is installed via the process connection Clamp DN25 made of stainless steel (1.4435). The electrical connection is a device connector in angular design according to DIN 43650. The material of the electrode is also stainless steel (1.4435). The insertion length is 60 mm. The operating temperature is 0 to +135 °C and the maximum compressive strength is 16 bar at 25 °C and also 1 bar at 60°C. This version is a pharmaceutical version with inspection certificate n. EN 10204 3.1 for material and roughness, roughness of parts in contact with the medium less than 0.8 my, with ASTM certificate and shrink-wrapped in foil.

Merkmale

Verpackungseinheit 1
Gewicht 0,56
Gewichtseinheit KG
Gewichtbezugsmenge 1
Ausführung konduktiv
Max. Druck 16 bar
Max. Temperatur 135 °C
Ausführung des elektrischen Anschlusses sonstige
Winkelstecker ja
Ausführung des Prozessanschlusses sonstige
Zellenkonstante 1
Werkstoff der Elektrode Edelstahl 316 (1.4435)
Sensortyp Pt100
Einstecklänge 60 mm
Werkstoff des Prozessanschlusses Edelstahl 316 (1.4435)
Kurzbeschreibung Conductive 2-electrode conductivity sensor, 0.1..1000uS/cm, Pt100,Clamp
eClass 11.0 - Klasse 27209090
UNSPSC 14.0801 - Klasse 41111900
