Abbildung ähnlich
JUMO

04563323
JUMO 437647 Konduktiver 2-Elektroden Leitfähi

437647 4053877005735 00437647
auf Anfrage
je 1 ST
keine Verfügbarkeitsinformationen

Verpackungseinheiten

1 ST Menge übernehmen

Funktionen

Verkaufsdaten

Mindestbestellmenge 1 ST
Bestellschritt 1 ST

Beschreibung

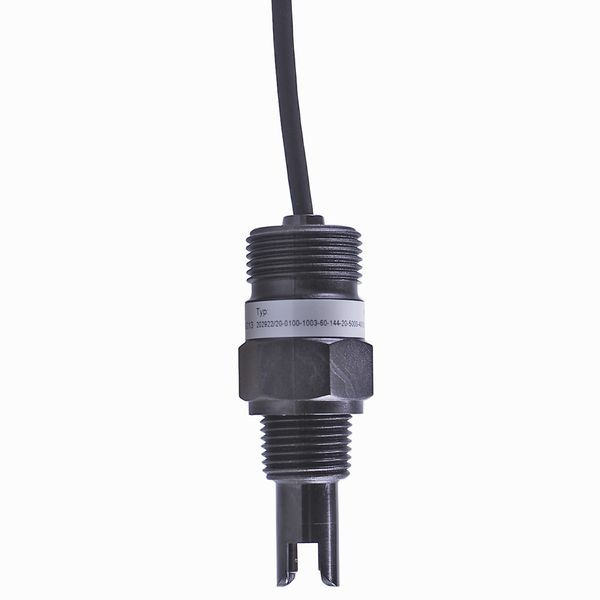

This conductivity sensor has a cell constant of K=0.01 (for measuring ranges 0.1 to 5000uS/cm) and a Pt100 measuring insert in two-wire circuit. It is installed via the PEI process connection 1/2-14NPT. A attached cable of 5000 mm is available as electrical connection. The material of the electrode is titanium. The insertion length is 40 mm. The operating temperature is -5 to +90 °C and the maximum compressive strength is 6 bar at 25 °C.

Merkmale

Verpackungseinheit 1
Gewicht 0,21
Gewichtseinheit KG
Gewichtbezugsmenge 1
Ausführung konduktiv
Kabellänge 5 m
Max. Druck 6 bar
Max. Temperatur 80 °C
Ausführung des elektrischen Anschlusses Kabel
Ausführung des Prozessanschlusses sonstige
Zellenkonstante 1
Werkstoff der Elektrode Titan
Sensortyp Pt100
Einstecklänge 40 mm
Werkstoff des Prozessanschlusses sonstige
Kurzbeschreibung Conductive 2-electrode conductivity sensor 0.1 to 5000 uS/cm, Pt100, 1/2-14NPT
eClass 11.0 - Klasse 27209090
UNSPSC 14.0801 - Klasse 41111900
