Abbildung ähnlich
JUMO

04563383
JUMO 456809 Konduktiver 2-Elektroden Leitfähi

456809 4053877005896 00456809
auf Anfrage
je 1 ST
keine Verfügbarkeitsinformationen

Verpackungseinheiten

1 ST Menge übernehmen

Funktionen

Verkaufsdaten

Mindestbestellmenge 1 ST
Bestellschritt 1 ST

Beschreibung

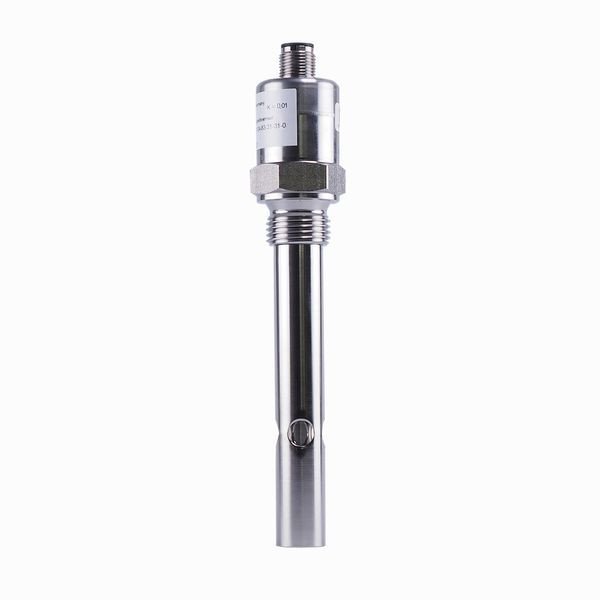

This conductivity sensor has a cell constant of K=0.01 (for measuring ranges 0.1 to 1000 uS/cm) and a Pt100 measuring insert in two-wire circuit. It is installed via the process connection G 1/2A made of stainless steel (1.4435). A M12-connector is available as electrical connection. The material of the electrode is stainless steel (1.4435). The insertion length is 110 mm. The operating temperature is 0 to +135 °C and the maximum compressive strength is 16 bar at 25 °C as well as 1 bar at 135°C.

Merkmale

Verpackungseinheit 1
Gewicht 0,22
Gewichtseinheit KG
Gewichtbezugsmenge 1
Ausführung konduktiv
Max. Druck 16 bar
Max. Temperatur 135 °C
Ausführung des elektrischen Anschlusses Rundstecker
Ausführung des Prozessanschlusses G 1/2 Zoll
Zellenkonstante 0.1
Werkstoff der Elektrode Edelstahl 316 (1.4435)
Sensortyp Pt100
Einstecklänge 110 mm
Werkstoff des Prozessanschlusses Edelstahl 316 (1.4435)
Kurzbeschreibung Conductive 2-electrode conductivity sensor, 0.1 to 1000 uS/cm, Pt1000, G 1/2A
eClass 11.0 - Klasse 27209090
UNSPSC 14.0801 - Klasse 41111900
