JUMO 456810 Konduktiver 2-Elektroden Leitfähi

456810 4053877005902 00456810
auf Anfrage
je 1 ST
keine Verfügbarkeitsinformationen

Verpackungseinheiten

1 ST Menge übernehmen

Funktionen

Verkaufsdaten

Mindestbestellmenge 1 ST
Bestellschritt 1 ST

Beschreibung

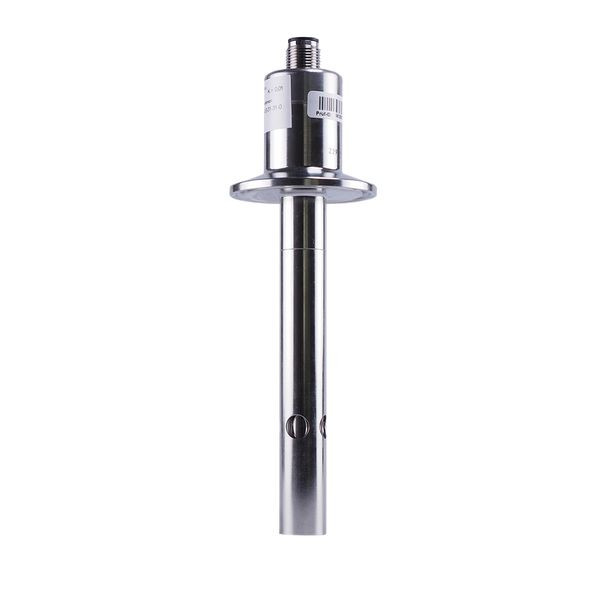

This conductive conductivity sensor has a cell constant of K=0.01 (for measuring ranges 0.05 to 10 uS/cm or 0.1 to 20 MOhm/cm) and a Pt100 measuring insert in two-wire circuit. The installation is carried out via the process connection Clamp DN 25 made of stainless steel (1.4435). An M12 plug is available as electrical connection. The electrode material is stainless steel (1.4435). The installation length is 115 mm. The operating temperature is 0 to +135 °C and the maximum pressure load is 16 bar at 25 °C and 1 bar at 135 °C. This version is a so-called pharmaceutical version with acceptance test certificate n. EN 10204 3.1 for material and roughness, roughness of the parts in contact with the medium less than 0.8 my, with ASTM certificate and shrink-wrapped in foil.

Merkmale

Verpackungseinheit 1
Gewicht 0,36
Gewichtseinheit KG
Gewichtbezugsmenge 1
Ausführung konduktiv
Max. Druck 16 bar
Max. Temperatur 135 °C
Ausführung des elektrischen Anschlusses Rundstecker
Ausführung des Prozessanschlusses sonstige
Zellenkonstante 0,01
Werkstoff der Elektrode Edelstahl 316 (1.4435)
Sensortyp Pt100
Einstecklänge 115 mm
Werkstoff des Prozessanschlusses Edelstahl 316 (1.4435)
Kurzbeschreibung Conductive 2-electrode conductivity sensor,0.05...10 uS/cm, 0.1...20 MOhm/cm
eClass 11.0 - Klasse 27209090
UNSPSC 14.0801 - Klasse 41111900
