Beschreibung

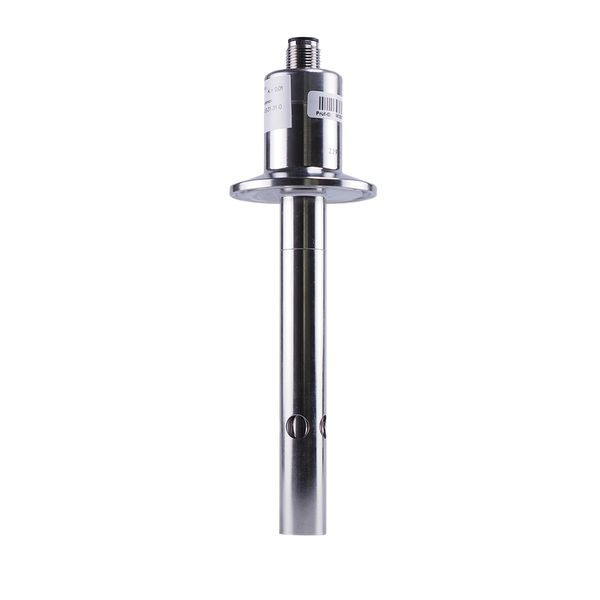

This conductivity sensor has a cell constant of K=0.01 (for measuring ranges 0.1 to 1000 uS/cm) and a Pt100 measuring insert in two-wire circuit. It is installed via the process connection Clamp DN25 made of stainless steel (1.4435). A M12-connector is available as electrical connection. The material of the electrode is also stainless steel (1.4435). The insertion length is 115 mm. The operating temperature is 0 to +135 °C and the maximum compressive strength is 16 bar at 25 °C and also 1 bar at 135°C. This version is a pharmaceutical version with inspection certificate n. EN 10204 3.1 for material and roughness, roughness of parts in contact with the medium less than 0.8 my, with ASTM certificate and shrink-wrapped in foil.
Merkmale
| Verpackungseinheit | 1 |
| Gewicht | 0,3 |
| Gewichtseinheit | KG |
| Gewichtbezugsmenge | 1 |
| Ausführung | konduktiv |
| Max. Druck | 16 bar |
| Max. Temperatur | 135 °C |
| Ausführung des elektrischen Anschlusses | Rundstecker |
| Ausführung des Prozessanschlusses | sonstige |
| Zellenkonstante | 0.1 |
| Werkstoff der Elektrode | Edelstahl 316 (1.4435) |
| Sensortyp | Pt100 |
| Einstecklänge | 115 mm |
| Werkstoff des Prozessanschlusses | Edelstahl 316 (1.4435) |
| Kurzbeschreibung | Conductive 2-electrode conductivity sensor, 0.1..1000uS/cm, Pt 100, Clamp |
| eClass 11.0 - Klasse | 27209090 |
| UNSPSC 14.0801 - Klasse | 41111900 |
