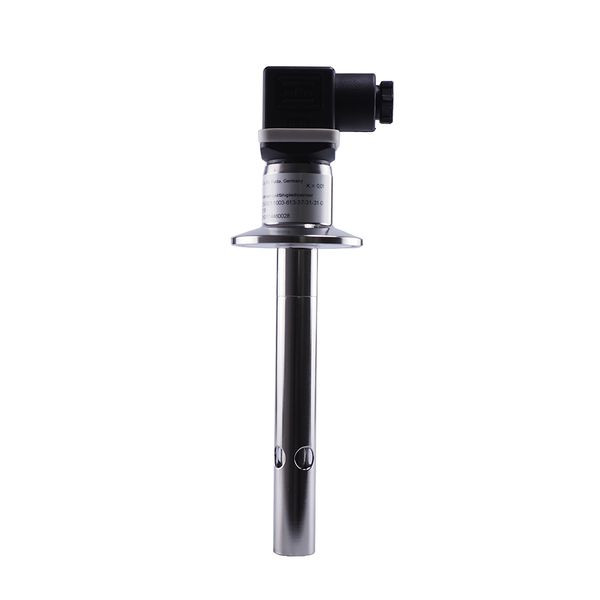

Abbildung ähnlich
JUMO

04563393
JUMO 462108 Konduktiver 2-Elektroden Leitfähi

462108 4053877005926 00462108
auf Anfrage
je 1 ST
keine Verfügbarkeitsinformationen

Verpackungseinheiten

1 ST Menge übernehmen

Funktionen

Verkaufsdaten

Mindestbestellmenge 1 ST
Bestellschritt 1 ST

Beschreibung

This conductivity sensor has a cell constant of K=0.01 (for measuring ranges 0.05 to 10 uS/cm or0.1 to 20 MOhm/cm) and a Pt100 measuring insert in two-wire circuit. It is installed via the process connection Clamp DN25 made of stainless steel (1.4435). The electrical connection is a device connector in angular design according to DIN 43650. The material of the electrode is also stainless steel (1.4435). The insertion length is 115 mm. The operating temperature is 0 to +135 °C and the maximum compressive strength is 16 bar at 25 °C and also 1 bar at 135°C.

Merkmale

Verpackungseinheit 1
Gewicht 0,28
Gewichtseinheit KG
Gewichtbezugsmenge 1
Ausführung konduktiv
Max. Druck 16 bar
Max. Temperatur 135 °C
Ausführung des elektrischen Anschlusses sonstige
Winkelstecker ja
Ausführung des Prozessanschlusses sonstige
Zellenkonstante 0,01
Werkstoff der Elektrode Edelstahl 316 (1.4435)
Sensortyp Pt100
Einstecklänge 115 mm
Werkstoff des Prozessanschlusses Edelstahl 316 (1.4435)
Kurzbeschreibung Conductive 2-electrode conductivity sensor, 0.05..10uS/cm, 0.1..20MOhm/cm
eClass 11.0 - Klasse 27209090
UNSPSC 14.0801 - Klasse 41111900
