Abbildung ähnlich
JUMO

04563406
JUMO 470099 Induktiver Leitfähigkeits-/Konzen

470099 4053877014782 00470099
auf Anfrage
je 1 ST
keine Verfügbarkeitsinformationen

Verpackungseinheiten

1 ST Menge übernehmen

Funktionen

Verkaufsdaten

Mindestbestellmenge 1 ST
Bestellschritt 1 ST

Beschreibung

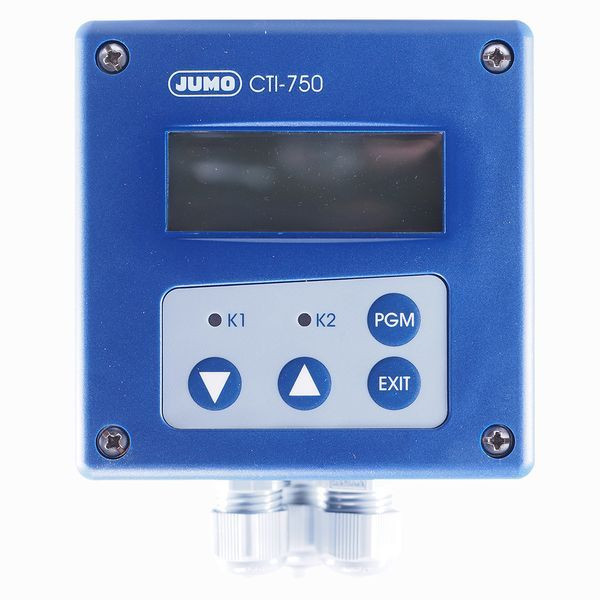

This inductive conductivity/concentration and temperature transmitter with switching contracts and fixed mounted sensor has two freely programmable, analog outputs for conductivity and temperature as well as two potential-free contracts. It is possible to activate up to four ranges and temperature coefficients. The temperature compensation can be lineal, natural water or as an individual characteristic curve (learning function). Furthermore the instrument has a dilution control. The instrument can be controlled via display and keyboard as well as via setup software. The process connection is a sensor made of PVDF material with a DN50, DIN 11851 (MK DN50, dairy pipe fitting) compression fitting. The power supply is provided by a power supply unit with DC 19...31 V.

Merkmale

Verpackungseinheit 1
Gewicht 2,88
Gewichtseinheit KG
Gewichtbezugsmenge 1
Ausführung induktiv
Max. Druck 10 bar
Max. Temperatur 140 °C
Ausführung des elektrischen Anschlusses sonstige
Ausführung des Prozessanschlusses sonstige
Zellenkonstante sonstige
Werkstoff der Elektrode Polyvinylidenfluorid (PVDF)
Sensortyp Pt1000
Einstecklänge 86 mm
Werkstoff des Prozessanschlusses Edelstahl 316 Ti (1.4571)
Kurzbeschreibung Inductive conductivity/concentration and temperature transmitter
eClass 11.0 - Klasse 27209090
UNSPSC 14.0801 - Klasse 41111900
