04563093

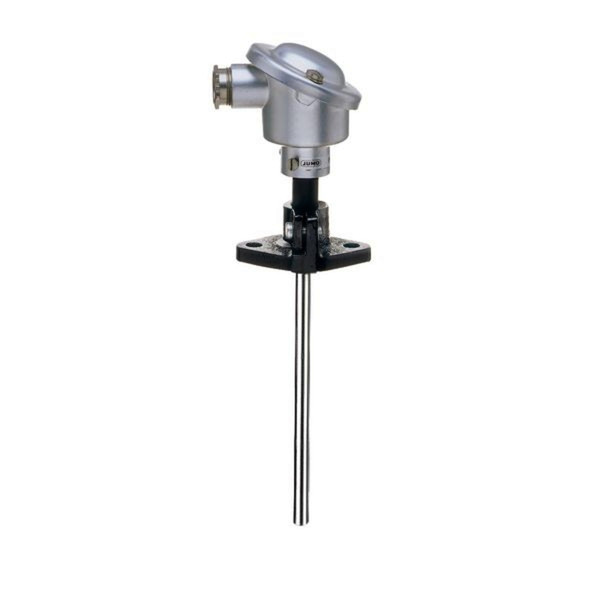

JUMO 54589 Thermoelement mit Anschlusskopf, 1

The pluggable thermocouple is suitable for temperature measurement in liquid and gaseous media by means of the Seebeck effect. The continuous protection tube is made of heat-resistant steel, material 1.4749 (operating temperature up to +1150 °C). The thermocouple can therefore be used excellently in heating, furnace and apparatus engineering. The single thermocouple 1x NiCr-Ni K according to DIN EN 60584 (class 2) is designed for temperatures from -200 to +1150 °C. The terminal head in form B is made of die-cast aluminium, has an M20 x 1.5 cable gland and can withstand ambient temperatures from -40 to +100 °C. The protective tube has a dimension of 15 x 500 mm. A stop flange (DIN 43734) serves as process connection.
