04563125

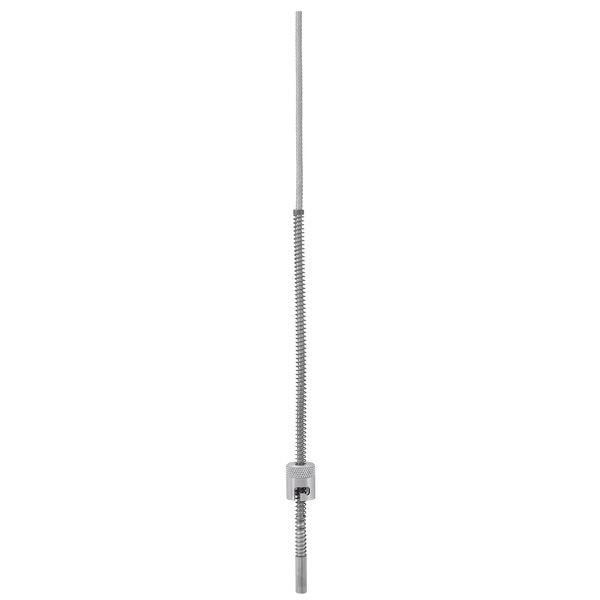

JUMO 55804 Thermoelement mit Bajonettverschlu

The pluggable thermocouple with bayonet lock (diameter 12 mm) and 2.5 m long compensation cable made of metal braiding is suitable for temperature measurement in solids by means of the Seebeck effect. The protection tube with a diameter of 6 mm made of heat-resistant steel, material 1.4571, has a 120° tip made of ceramic (KER 221). This design is therefore particularly suitable for measurements on slide bearings and tools, for example. The adjustment range of the insertion length at the spring is 20 to 180 mm. The single thermocouple 1x Fe-CuNi L to DIN 43710 is designed for temperatures from 0 to 400 °C. The compensating cable can withstand ambient temperatures from -20 to +350 °C and the connections at the cable end are provided with 6.3 mm receptacles according to DIN 46247.
