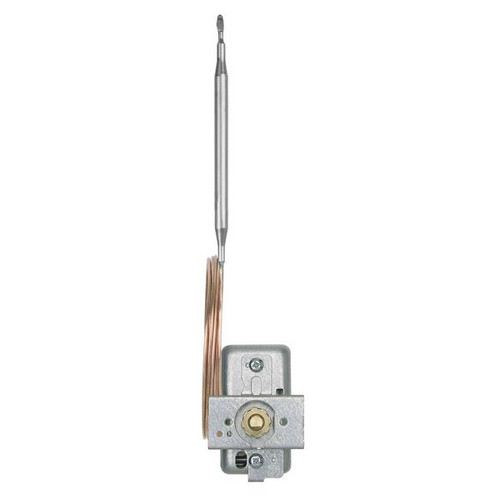

Abbildung ähnlich
JUMO

04563820
JUMO 60001380 Temperaturwächter mit Umschaltk

60001380 4053877007371 60001380
auf Anfrage
je 1 ST
keine Verfügbarkeitsinformationen

Verpackungseinheiten

1 ST Menge übernehmen

Funktionen

Verkaufsdaten

Mindestbestellmenge 1 ST
Bestellschritt 1 ST

Beschreibung

The 1-pole mechanical panel-mounting thermostat is very robust due to its zinc-plated sheet steel case and can also be used in rough conditions. It operates according to the fluid expansion principle and can be used up to a maximum permissible probe temperature of 345°C without any problems. The smooth round sensor of stainless steel has a diameter of 6 mm with a probe length of approx. 87 mm. The capillary of the thermostat is made of copper and can be laid flexibly with a bending radius of 5 mm. The maximum permissible ambient temperature at the switch head (protection class IP00) is 80 °C, which is fixed using a fixing bracket with two M3 x 22 screws. The desired shut-off temperature can be easily set on a scale with the aid of a screwdriver. The temperature monitor is characterized by a high switching point accuracy of +/- 1.5 % in the upper third of the scale. A decisive advantage is that no additional auxiliary energy is necessary for temperature measurement. The electrical connection is made at the tab connectors (A 6.3 x 0.8 DIN 46244) of the switching unit, which can directly switch a maximum permissible switching capacity of AC 230 V/16. The thermostat has a switching differential (hysteresis) of 2.5% of the scale range and automatically switches back to the original state when the temperature falls below the switch-off temperature by this value. The temperature monitor is very flexible and is used in heating, air conditioning and ventilation technology as well as in the plastics industry, apparatus and furnace construction and for temperature monitoring in laboratories and climatic chambers. The device is approved according to DIN EN 14597 and has UL and EAC approval.

Merkmale

Schutzart (IP) IP00
Verpackungseinheit 1
Gewicht 0,07
Gewichtseinheit KG
Gewichtbezugsmenge 1
Max. Betriebstemperatur 500 °C
Ausführung des Sensors Kapillarrohr
Ausführung des elektrischen Anschlusses Flachsteckanschluss
Einstellbare Ausschalttemperatur 300 °C
Einstellbare Einschalttemperatur 50 °C
Geeignet als 2 Punktregler ja
Geeignet als Wächter ja
Geräteausführung Einbaugerät
Schaltdifferenz der Temperatur 2.5 °C
Anzahl der Kontakte als Wechsler 1
Kurzbeschreibung Temperature monitor changeover contact, 50..300°C, capillary 1000mm
eClass 11.0 - Klasse 27371245
UNSPSC 14.0801 - Klasse 39122229
