04563860
JUMO 60002452 Sollwertstellerset (W1), 30 bis

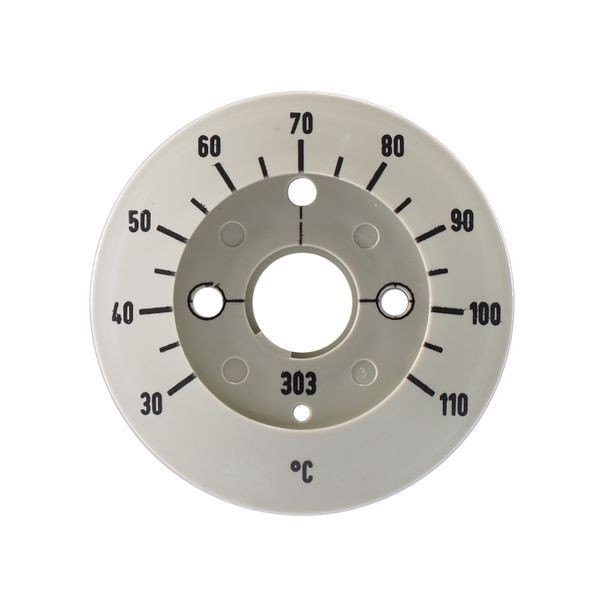

The setpoint adjuster set consists of an setting button (slate gray RAL 7015, material thermoplastic), a scale (pebble gray RAL 7032, material thermoplastic) and two M3 x 8 screws according to DIN 84 (material nickel-plated brass). The hole distance for mounting is 22 mm. The scope of delivery also includes a sheet metal plate with which a maximum limitation of the adjustable setpoint can be carried out. The scale has a maximum adjustment range of 250 angular degrees. The setpoint adjuster is required for temperature adjustment of panel-mounted thermostats that do not have their own adjustment scale.
