Beschreibung

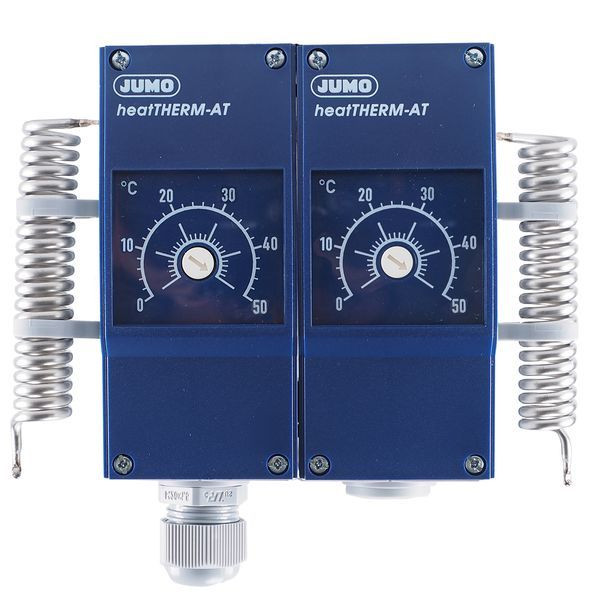

Due to its shock-resistant case made of high-quality plastic, the mechanical surface-mounting double thermostat is very robust and can also be used in rough conditions. The measuring systems used operate according to the fluid expansion principle and can be used up to a maximum permissible probe temperature of 60 °C without any problems. The spiral probe made of high-quality stainless steel has a diameter of 17 mm and is mounted on the side of the case. The maximum permissible ambient temperature at the case (protection class IP54) is 50 °C. The case is mounted directly on the bottom section of the case as wall mounting. With the aid of a screwdriver, the desired switch-off temperatures can be set independently on a scale after removing the case lid. The set temperature is visible at all times through a inspection glass in the case lid. The temperature monitors are characterized by a high switching point accuracy of +/-3 % in the upper third of the scale. The integrated temperature compensation reduces ambient temperature influences at the switching head to a minimum. A decisive advantage is that no additional auxiliary energy is required for temperature measurement. The electrical connection is made by PushIn© terminals, which significantly reduces installation time compared to conventional screw connections. The maximum permissible switching capacity is AC 230 volts / 16 A. The temperature monitors have a switching differential (hysteresis) of approx. 3 K. Both systems automatically switch back to the original state after the temperature has fallen below the switch-off temperature by this value. The thermostat is very flexible and can be used in room temperature monitoring as well as in building automation. It can also be used in heating, air conditioning and ventilation technology. Further areas of application are temperature monitoring in laboratory and climatic cabinets. The device is approved according to DIN EN 14597 and has an EAC approval.
Merkmale
| Schutzart (IP) | IP54 |
| Verpackungseinheit | 1 |
| Gewicht | 0,55 |
| Gewichtseinheit | KG |
| Gewichtbezugsmenge | 1 |
| Statistische Warennummer | 90321080 |
| Max. Betriebstemperatur | 60 °C |
| Ausführung des Sensors | Kapillarrohr |
| Ausführung des elektrischen Anschlusses | sonstige |
| Einstellbare Ausschalttemperatur | 50 °C |
| Geeignet als Wächter | ja |
| Geräteausführung | Aufbaugerät |
| Schaltdifferenz der Temperatur | 1.5 °C |
| Anzahl der Kontakte als Wechsler | 2 |
| Schutzart (NEMA) | sonstige |
| Kurzbeschreibung | Double thermostat (TW/TW), changeover contact, 0..50°C, room thermostat |
