Abbildung ähnlich
JUMO

04563194

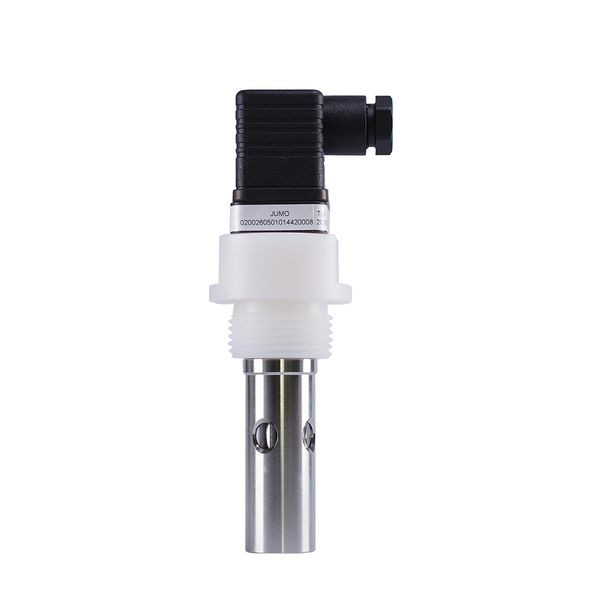

JUMO 89393 Konduktiver 2-Elektroden Leitfähig

89393 4053877005803 00089393
auf Anfrage
je 1 ST
keine Verfügbarkeitsinformationen

Verpackungseinheiten

1 ST Menge übernehmen

Funktionen

Verkaufsdaten

Mindestbestellmenge 1 ST
Bestellschritt 1 ST

Beschreibung

This conductivity sensor has a cell constant of K=0.01 (for measuring ranges 0.05 to 10 uS/cm or 0.1 to 20 MOhm/cm) and a Pt100 measuring insert in two-wire circuit. It is installed via the process connection G 1A made of PVFD. The electrical connection is a device connector in angular design according to DIN 43650. The material of the electrode is stainless steel (1.4571). The insertion length is 78 mm. The operating temperature is 0 to +135 °C and the maximum compressive strength is 16 bar at 25 °C as well as 9 bar at 60°C.

Merkmale

Verpackungseinheit 1
Gewicht 0,26
Gewichtseinheit KG
Gewichtbezugsmenge 1
Ausführung konduktiv
Max. Druck 16 bar
Max. Temperatur 135 °C
Ausführung des elektrischen Anschlusses sonstige
Winkelstecker ja
Ausführung des Prozessanschlusses G 1 Zoll
Zellenkonstante 0,01
Werkstoff der Elektrode Edelstahl 316 Ti (1.4571)
Sensortyp Pt100
Einstecklänge 78 mm
Werkstoff des Prozessanschlusses Polyvinylidenfluorid (PVDF)
Kurzbeschreibung Conductive 2-electrode conductivity sensor, 0.05..10uS/cm, 0.1..20MOhm/cm
eClass 11.0 - Klasse 27209090
UNSPSC 14.0801 - Klasse 41111900
